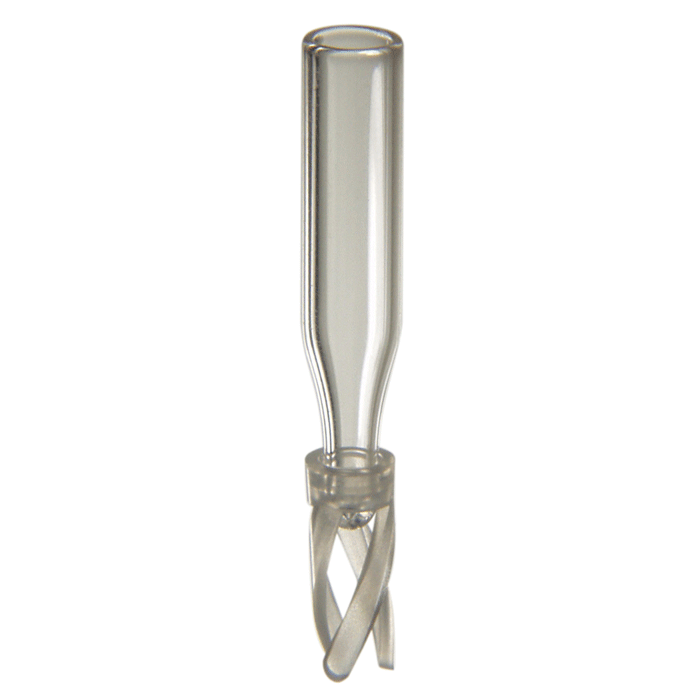

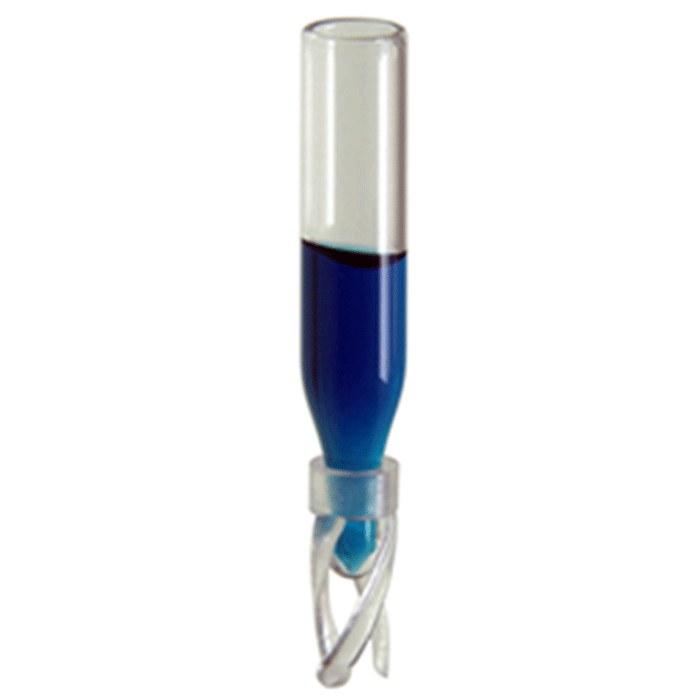

Inserts, Low Volume for Vials, Glass. Clear, Surface Treated, 300ul fill volume with a conical, precision point and 6x29mm outer dimensions with plastic spring attached. For use in 2ml autosampler vials. RSA-Pro Brand. 100/PK.
Additional Info:
Enhance sensitivity and reduce adsorption with advanced RSA‑Pro™ low volume inserts designed for demanding analytical workflows.
9502S‑02ND‑RS inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass that is further surface treated to increase hydrophobicity and reduce analyte interaction. This combination of RSA glass chemistry and additional surface treatment provides exceptional deactivation, improving recovery of low abundance and adsorption‑prone compounds.
Each insert features a mandrel‑formed, precision conical tip for consistent geometry and maximum sample recovery. Residual volume is approximately 2 µL (depending on autosampler), with about 200 µL usable volume. Polypropylene springs keep the insert centered in the vial, reducing the risk of needle contact and improving injection reliability.
The enhanced surface treatment distinguishes these inserts from standard silanized options by offering greater consistency from insert to insert and more complete deactivation. This makes them especially effective for sensitive analyses involving proteins, peptides, and trace‑level compounds. Manufacturing in an ISO 9001:2015 certified facility ensures high reproducibility and quality control.
Key Benefits
300 µL fill volume for low‑volume applications
~200 µL usable volume for efficient sample use
~2 µL residual volume for maximum recovery
Surface treated RSA‑Pro glass for reduced adsorption
Increased hydrophobicity improves analyte recovery

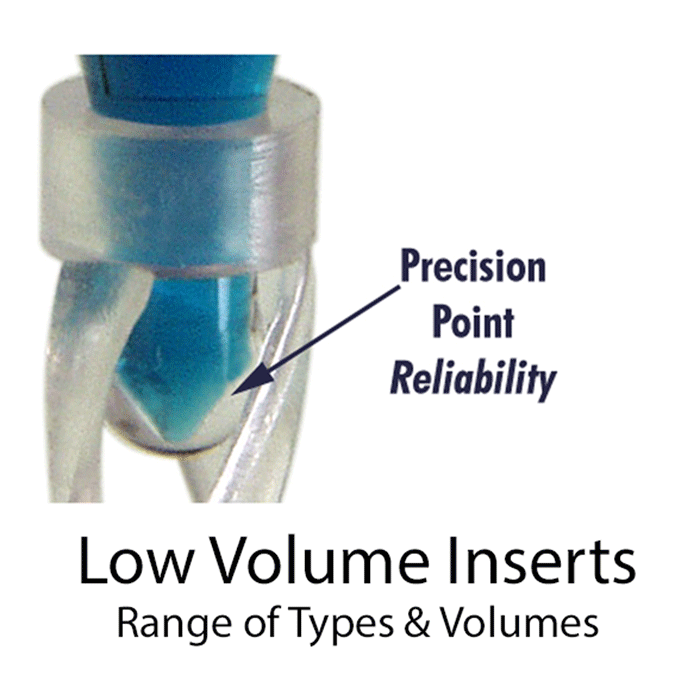

Precision conical tip for consistent needle access
Spring‑mounted design for centering and stability
Improved protection against needle breakage
ISO‑controlled manufacturing for consistency
Typical Applications
LC‑MS and LC‑MS/MS analysis
Proteins and peptide analysis
Low abundance and trace analyte testing
Pharmaceutical and bioanalytical workflows
Environmental and food safety testing
Compatibility
Designed for 2 mL (12 × 32 mm) autosampler vials
Compatible with:
9 mm screw caps
11 mm snap caps
Performance and Design Notes
Mandrel‑formed tips ensure consistent geometry across inserts
Bottom design optimized for maximum recovery and needle safety
Surface treatment provides higher performance than standard silanization
Excellent choice for adsorption‑sensitive compounds
Important Notes
Ideal for low concentration or adsorption‑prone analytes
Provides enhanced performance over standard RSA inserts
Suitable for high‑sensitivity analytical workflows
Case quality controlled for reproducibility
